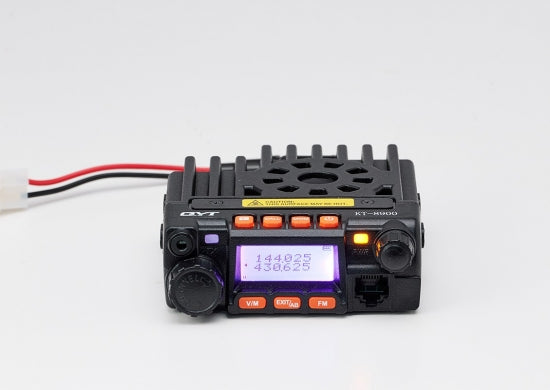

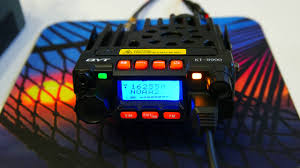

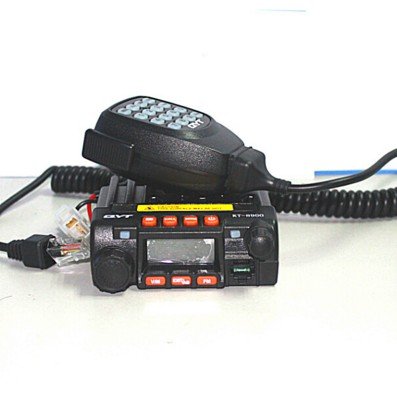

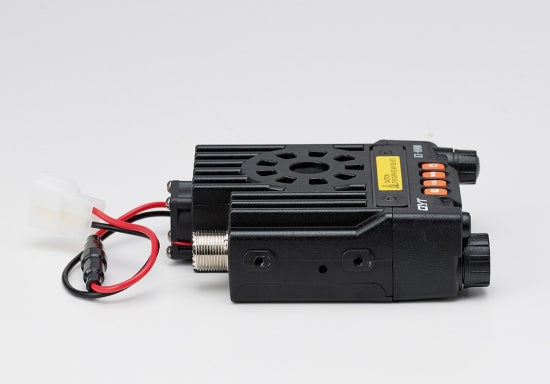

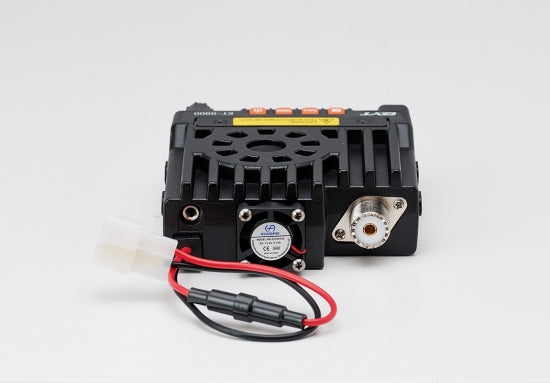

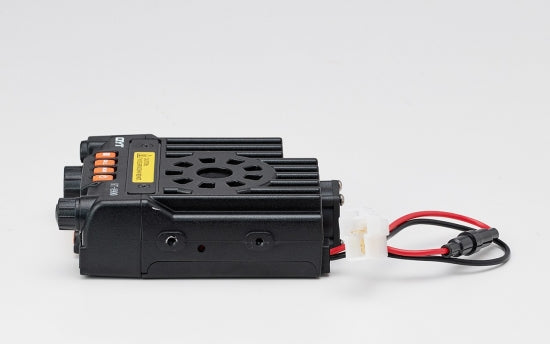

Radio base/ movil QYT KT8900 Dual band UHF 400-480 Mhz VHF 136-174 Mhz 25W
La KT 8900 es un radio base/móvil liviano y práctico. Con potencia de hasta 25Watt, ideal para radiocomunicación de larga distancia. Opera en frecuencia VHF (136-174Mhz) y UHF (400-480Mhz). EQUIPO NO INCLUYE ANTENA
Function:
1. Dual Band VHF:136-174MHz UHF:400-480MHz
2. Step Frequency 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
3. CTCSS / DCS / 5Tone / 2Tone / DTMF
4. High/Low Transmitted Power 25W/20W(VHF/UHF)

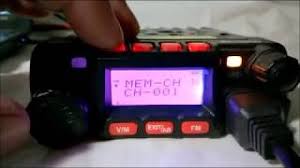

5. 200 Channel Memory

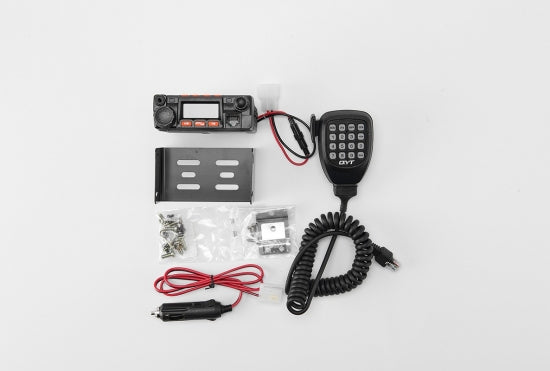

El paquete contiene:
1 x QYT KT8900

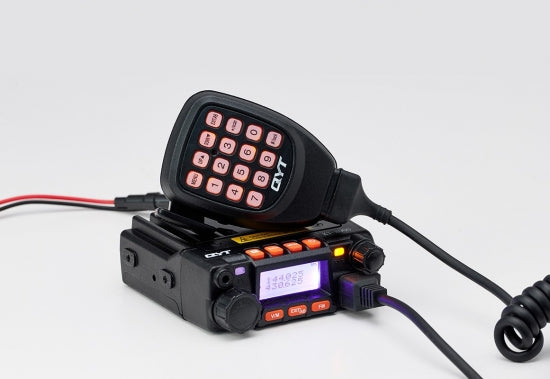

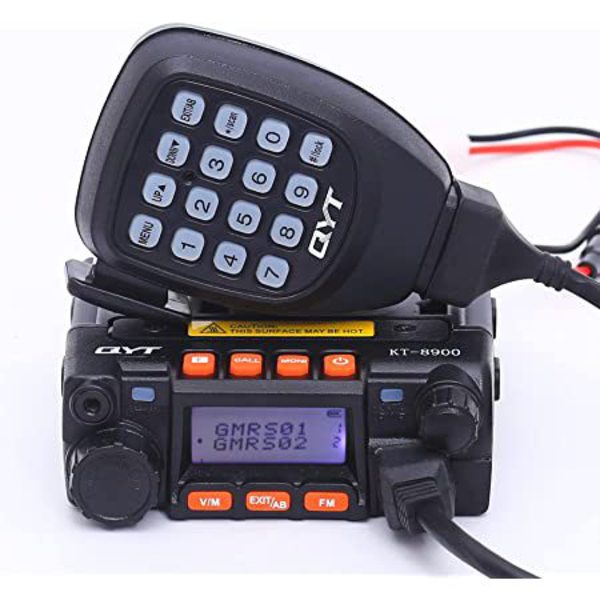

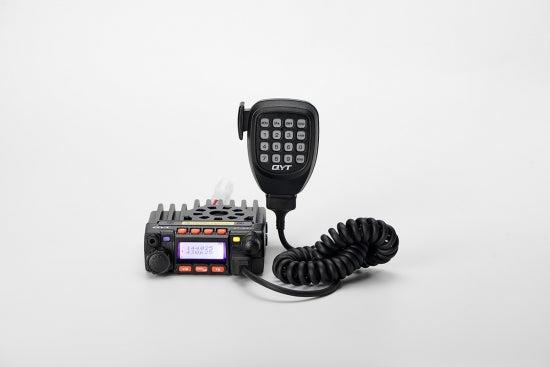

1 x Microphone
1 x Car Power Cable
1 x Fuse
1 x Mounting bracket
1 x Screw
1 x User"s Manual

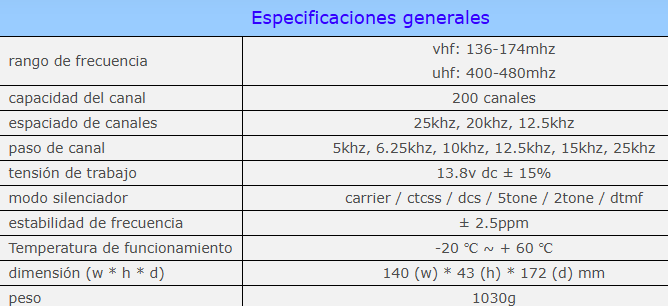

- Item number: KT8900
- General Frequency Range VHF:136-174MHz UHF:400-480MHz
- Number of Channel: 200
- Channel Spacing: 25KHz 20K 12.5
- Phase lock step: 5K Hz - 6.25 KHz - 10 KHz - 12.5 KHz - 15 KHz - 25 KHz
- Working Voltage: 13.8 V DC
- Squelch way: CTCSS/DCS/5Tone/2Tone/DTMF
- Frequency Stability: 2.5ppm
- Operating Temperature: -20~+60°C
- Dimension(W x H x D)98(W) x 35(H) x 118(D)mm
- Weight: 408g

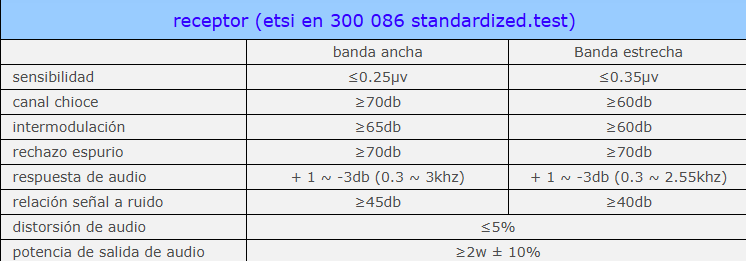

- Receiver Broadband: Narrow band
- Sensitivity: 0.25V - 0.35V
- Channel choice: 70dB 60dB
- Intermodulation: 65dB 60dB
- Spurious Rejection: 70dB 70dB
- Audio response+1~ -3dB(0.3~3KHz)+1~ -3dB(0.3~2.55KHz)
- Signal to noise ratio: 45dB 40dB
- Audio distortion: 5%
- Audio output power: 2W

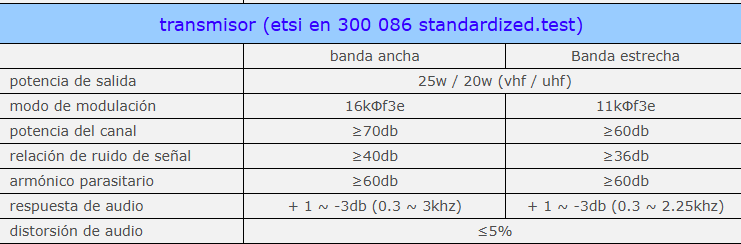

- Transmitter Broadband: Narrow band
- Output power: 25W/20W(VHF/UHF)
- Modulation Mode: 16K ¦ F3E11K ¦ F3E
- Channel Power: 70dB 60B
- Signal to noise ratio: 40dB 36dB
- Parasitic harmonic: 60dB 60dB
- Audio response+1~ -3dB(0.3~3KHz)+1~ -3dB(0.3~2.55KHz)
- Audio distortion: 5%
